Towing Winch Snatch Blocks

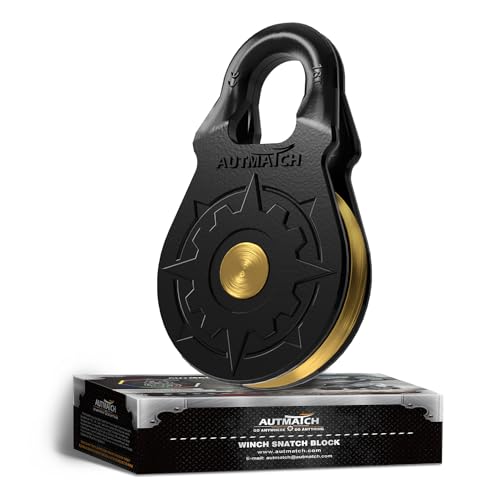

A snatch block is a pulley with a side plate that opens to accept a winch line; it redirects the cable and changes pull direction, reduces load on the winch, and can double pulling power when used as a mechanical advantage pulley

Select a working load limit (WLL) at least equal to the maximum load you expect to move and prefer a safety margin of 2–3 times the vehicle or load weight; common consumer snatch blocks range from 5 to 20 tons WLL depending on use

Match the sheave diameter to your winch cable or synthetic rope diameter and style; manufacturers list compatible rope sizes—choose a block with a sheave large enough to prevent excessive bending and wear on your specific cable (typical small blocks fit 3/8"–1/2" cables, larger blocks fit thicker ropes)

Many snatch blocks are compatible with both, but check the product’s recommended rope types and sheave material; synthetic rope benefits from larger sheaves and smooth surfaces, while steel cable requires grooved or hardened sheaves designed for wire

Before each use inspect the sheave, swivel, pin, side plates, and hook for cracks, corrosion, sharp edges, or deformation; keep the sheave and pin lubricated per manufacturer guidance and store dry to prevent rust—replace the block if any load-bearing part shows damage

Yes; using one snatch block can roughly halve the load on the winch (2:1 advantage) while doubling the line travel, and adding more blocks increases the mechanical advantage, but the winch line must handle the increased total line length and pulley friction reduces ideal advantage

Look for a secure attachment point (clevis, swivel hook, or shackle-compatible hole) rated for the block’s WLL; a swivel hook can reduce twisting, while a clevis or shackle attachment provides a low-profile, secure connection for heavy loads
