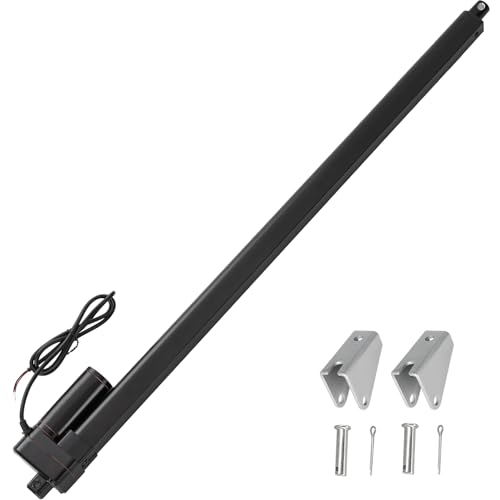

36 inch stroke linear actuator 12V with mounting brackets
12V linear actuator with 36" stroke, 440lbs push and 330lbs pull. Built-in limit switches, IP65 waterproof rating, quiet operation. Customers note reliable lifting and smooth performance, with some comments on speed
Highlights
- high load capacity
- built-in limit switches
- waterproof enclosure
Pros
- 12V operation
- 36" stroke length
- IP65 waterproof
- built-in limit switches
- quiet operation
Cons
- speed described as slow by some customers
Best For
Features
- SpecificationVoltage DC 12V;Stroke length36"(900mm),Fully retracted length 42"(1050mm)
- Fully extended length78"(1950mm); No load speed 0. 31"/sec (8mm/s)
- Maximum load440lbs(2000N);Maximum current draw5A.
- FeaturesThe linear actuator equip with high performance motor,it can provide a pushing force up to 440lbs and pulling force up to 330lbs. With self-locking function and built-in limit switch,it can be stopped at any position and automatically stop at the top and the bottom.
- Quiet & StableThe linear actuator adopts plastic gears,more quiet and durable,not easy to oxidize,noise below 50dB. High quality aluminum alloy and four corner fixation base design make linear actuator more stable and sturdy.
- Protection Class IP65Suitable for home and outdoor use. It can be widely used in industrial electric lifting system
- electric bed
- traction bed
